Harvey Tool
738612

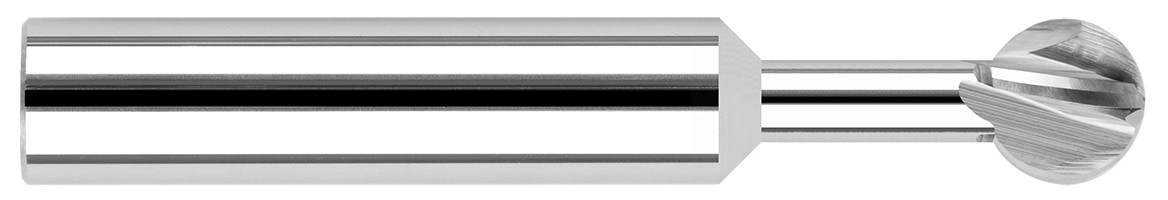

Undercutting End Mill - 300°
Specifications
| Long Description | 0.1875" (3/16) Cutter DIA x 0.2810" (9/32) Neck Length x 300° Carbide Undercutting End Mill, 4 Flutes |
|---|---|
| Short Description | 0.1875" (3/16) Cutter DIA x 0.2810" (9/32) Neck Length x 300° Wrap Angle - 4 FL |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 4 |
| Weight | 0.024 |
| Wrap Angle | 300 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.1875" (3/16) |
| Profile | Spherical |
| Metric | N |
| Neck Diameter | 0.0820" |
| Neck Length | 0.2810" (9/32) |
| Coating | UN |
| Length of Cut | 0.1740" |
| Radius | 0.0930" (3/32) |
