Harvey Tool
739240

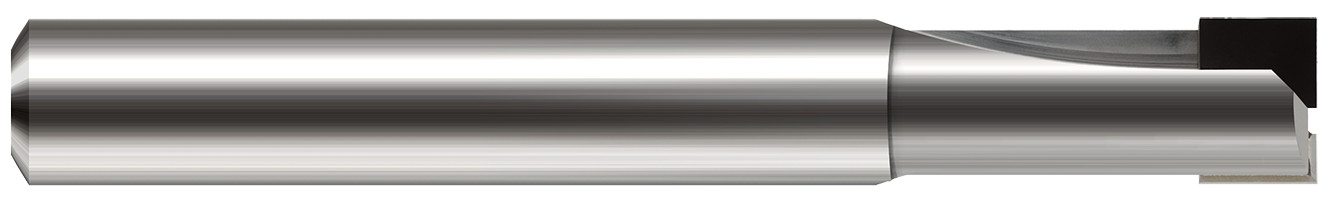

End Mill - PCD Diamond - Square
Specifications
| Long Description | 0.6250" (5/8) Cutter DIA x 0.6250" (5/8) Length of Cut x 1.2500" (1-1/4) Reach PCD Square End Mill, 2 Flutes, PCD |
|---|---|
| Short Description | 2 FL - 0.6250" (5/8) Cutter DIA x 0.6250" (5/8) LOC x 1.2500" (1-1/4) Reach - PCD |
| Shank Diameter | 0.6250" (5/8) |
| Flutes | 2 |
| Weight | 0.5 |
| Overall Length | 3.5000" (3-1/2) |
| Cutter Diameter | 0.6250" (5/8) |
| Profile | Square |
| Metric | N |
| Neck Diameter | 0.5730" |
| Coating | PCD |
| Length of Cut | 0.6250" (5/8) |
