Harvey Tool
739710

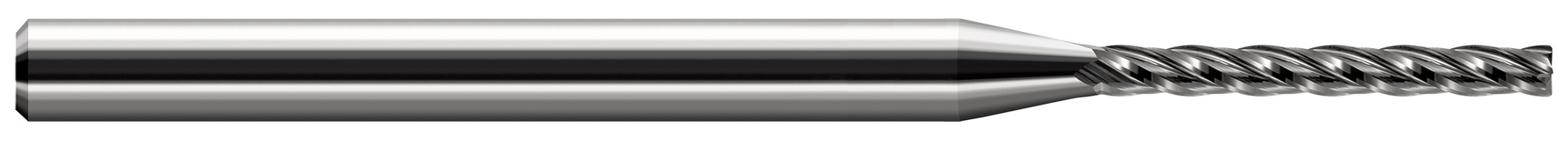

Miniature End Mill - Corner Radius - Long Flute
Specifications
| Long Description | 0.1562" (5/32) Cutter DIA x 0.0100" Radius x 1.2500" (1-1/4) Length of Cut Carbide Corner Radius End Mill, 4 Flutes |
|---|---|
| Short Description | 4 FL - 0.1562" (5/32) Cutter DIA x 0.0100" Radius x 1.2500" (1-1/4) LOC |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 4 |
| LOC Multiple | (8x) |
| Weight | 0.035 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.1562" (5/32) |
| Profile | Corner Radius |
| Metric | N |
| Coating | UN |
| Length of Cut | 1.2500" (1-1/4) |
| Corner Radius | 0.0100" |
