Harvey Tool
740933

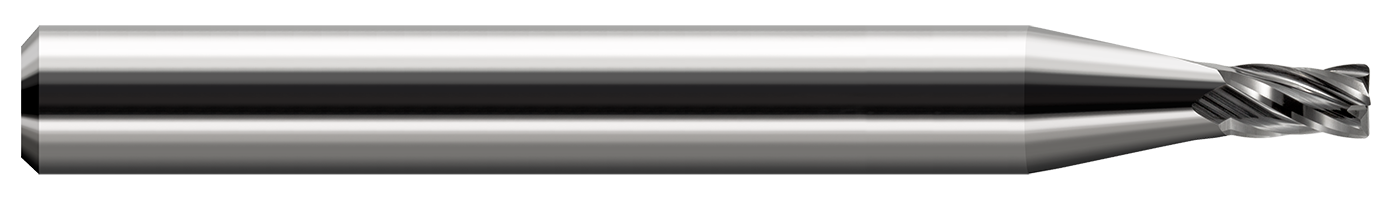

Miniature End Mill - 4 Flute - Corner Radius
Specifications
| Long Description | 1.500 mm Cutter DIA x 0.200 mm Radius x 2.200 mm Length of Cut Carbide Corner Radius End Mill, 4 Flutes |
|---|---|
| Short Description | 4 FL - 1.500 mm Cutter DIA x 0.200 mm Radius x 2.200 mm LOC |
| Shank Diameter | 3.000 mm |
| Flutes | 4 |
| LOC Multiple | (1.5x) |
| Weight | 0.009 |
| Overall Length | 38.000 mm |
| Cutter Diameter | 1.500 mm |
| Profile | Corner Radius |
| Metric | Y |
| Coating | UN |
| Length of Cut | 2.200 mm |
| Corner Radius | 0.200 mm |
