Harvey Tool
742931-C3

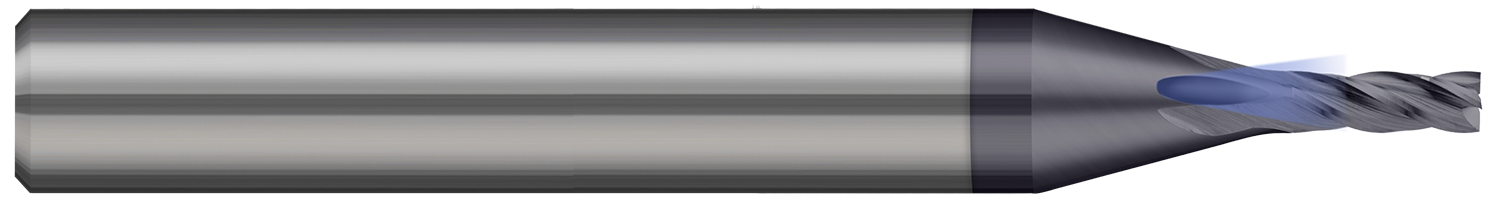

Miniature End Mill - Square - Coolant Through
Specifications
| Long Description | 0.0310" (1/32) Cutter DIA x 0.0930" (3/32) Length of Cut Carbide Coolant Through Square End Mill, 4 Flutes, AlTiN Coated |
|---|---|
| Short Description | 4 FL - 0.0310" (1/32) Cutter DIA x 0.0930" (3/32) LOC - AlTiN Coated |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 4 |
| LOC Multiple | (3x) |
| Weight | 0.04 |
| Overall Length | 2.0000" (2) |
| Coolant Through | Y |
| Cutter Diameter | 0.0310" (1/32) |
| Profile | Square |
| Metric | N |
| Coating | C3 |
| Length of Cut | 0.0930" (3/32) |
