Harvey Tool
743208

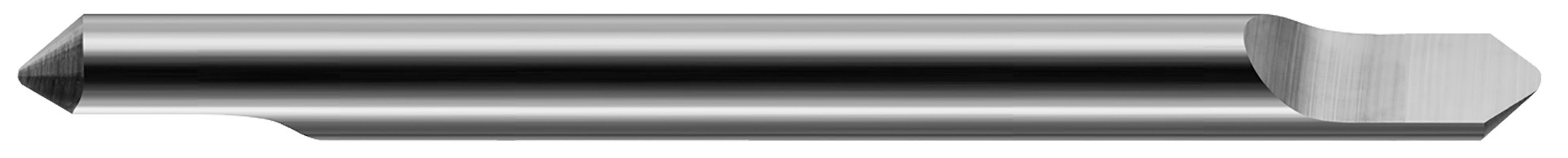

Engraving Cutter - Tip Radius - Double-Ended
Specifications
| Type | II |
|---|---|
| Short Description | 0.1250" (1/8) Shank DIA x 0.0150" (1/64) Radius x 90° included DE - 1 FL |
| Long Description | 0.1250" (1/8) Shank DIA x 0.0150" (1/64) Radius x 90° included Carbide Radius Engraver DE, 1 Flute |
| Metric | N |
| Included Angle | 90 |
| Angle per Side | 45 |
| Double Ended | Y |
| Coating | UN |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 1 |
| Weight | 0.011 |
| Overall Length | 2.0000" (2) |
| Profile | Tip Radius |
| Length of Cut | 0.0560" |
| Radius | 0.0150" (1/64) |
