Harvey Tool
744360-C6

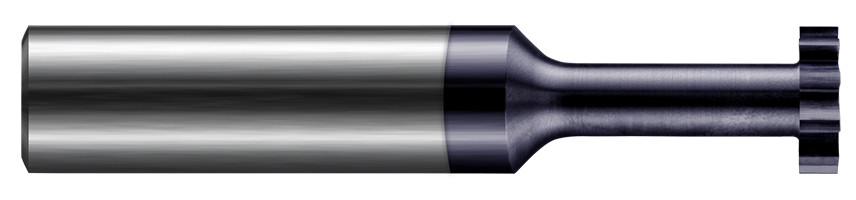

Keyseat Cutter - Square - For Hardened Steels
Specifications
| Type | I |
|---|---|
| Short Description | 0.6250" (5/8) Cutter DIA x 0.1250" (1/8) Width x 1.0000" (1) Neck Length - Standard Slotting - 10 FL - AlTiN Nano Coated |
| Long Description | 0.6250" (5/8) Cutter DIA x 0.1250" (1/8) Width x 1.0000" (1) Neck Length CarbideSquare Standard Keyseat Cutter for Hardened Steels, 10 Flutes, AlTiN Nano Coated |
| Cutter Width | 0.1250" (1/8) |
| Neck Diameter | 0.3120" (5/16) |
| Reach Multiple | (1.5x) |
| Shank Diameter | 0.6250" (5/8) |
| Flutes | 10 |
| Weight | 0.408 |
| Overall Length | 3.5000" (3-1/2) |
| Cutter Diameter | 0.6250" (5/8) |
| Profile | Square |
| Metric | N |
| Neck Length | 1.0000" (1) |
| Coating | C6 |
