Harvey Tool
744862

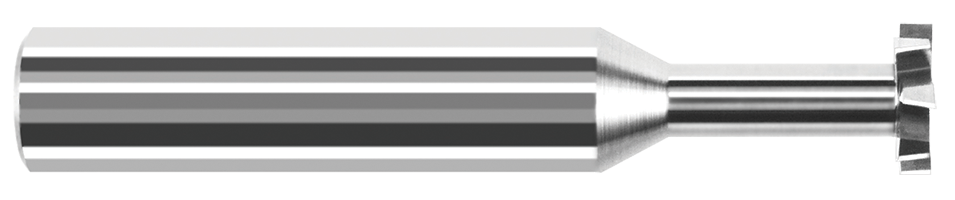

Keyseat Cutter - Staggered Tooth - Square
Specifications
| Type | I |
|---|---|
| Short Description | 0.1562" (5/32) Cutter DIA x 0.0620" (1/16) Width x 0.2340" (15/64) Neck Length - Standard Slotting - 6 FL |
| Long Description | 0.1562" (5/32) Cutter DIA x 0.0620" (1/16) Width x 0.2340" (15/64) Neck Length CarbideSquare Standard Stagger Keyseat Cutter, 6 Flutes |
| Cutter Width | 0.0620" (1/16) |
| Neck Diameter | 0.0780" (5/64) |
| Reach Multiple | (1.5x) |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 6 |
| Weight | 0.026 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.1562" (5/32) |
| Profile | Square |
| Metric | N |
| Neck Length | 0.2340" (15/64) |
| Coating | UN |
