Harvey Tool
745231-C8

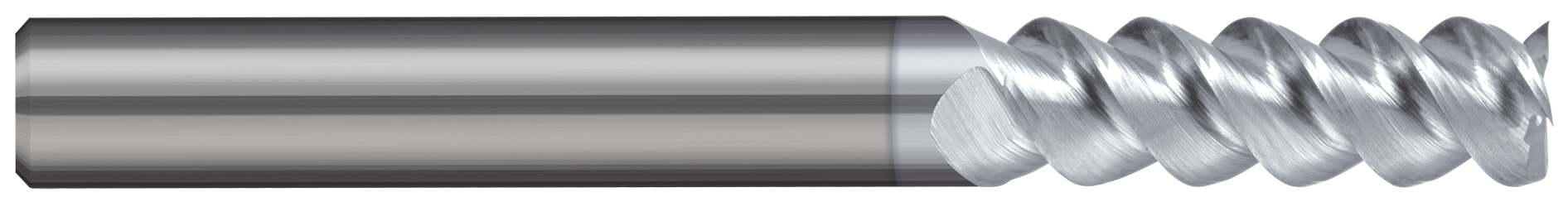

High Helix End Mill for Aluminum - Square
Specifications
| Long Description | 0.0310" (1/32) Cutter DIA x 0.0930" (3/32) Length of Cut Carbide 60° Helix Square End Mill, 3 Flutes, TiB2 Coated |
|---|---|
| Short Description | 3 FL - 0.0310" (1/32) Cutter DIA x 0.0930" (3/32) LOC - TiB2 Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 3 |
| LOC Multiple | (3x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0310" (1/32) |
| Profile | Square |
| Metric | N |
| Coating | C8 |
| Length of Cut | 0.0930" (3/32) |
