Harvey Tool
746908

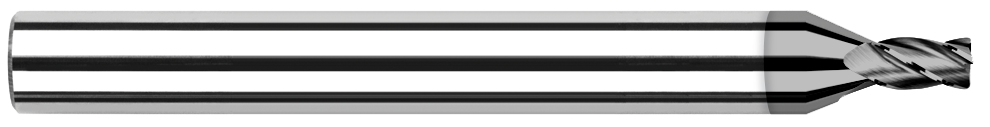

End Mill - CVD Diamond - Corner Radius
Specifications
| Long Description | 0.1250" (1/8) Cutter DIA x 0.0050" Radius x 0.1870" (3/16) Length of Cut Carbide Corner Radius End Mill, 4 Flutes, CVD Diamond 9µm |
|---|---|
| Short Description | 4 FL - 0.1250" (1/8) Cutter DIA x 0.0050" Radius x 0.1870" (3/16) LOC - CVD Diamond 9µm |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (1.5x) |
| Weight | 0.011 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Corner Radius |
| Metric | N |
| Coating | C5 |
| Length of Cut | 0.1870" (3/16) |
| Corner Radius | 0.0050" |
