Harvey Tool
752845

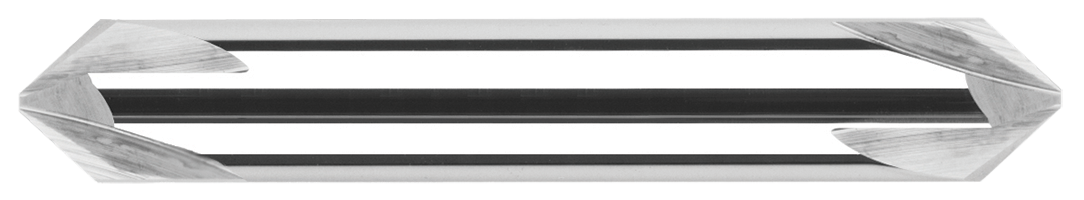

Chamfer Cutter - Pointed - Double-Ended
Specifications
| Type | III |
|---|---|
| Short Description | 0.3750" (3/8) Shank DIA x 45° per side DE- 4 FL |
| Long Description | 0.3750" (3/8) Shank DIA x 45° per side Carbide Pointed Chamfer Cutter DE, 4 Flutes |
| Included Angle | 90 |
| Angle per Side | 45 |
| Metric | N |
| Coating | UN |
| Shank Diameter | 0.3750" (3/8) |
| Flutes | 4 |
| Weight | 0.119 |
| Double Ended | Y |
| Overall Length | 2.5000" (2-1/2) |
| Profile | Pointed |
| Length of Cut | 0.1670" |
