Harvey Tool
754545-C3

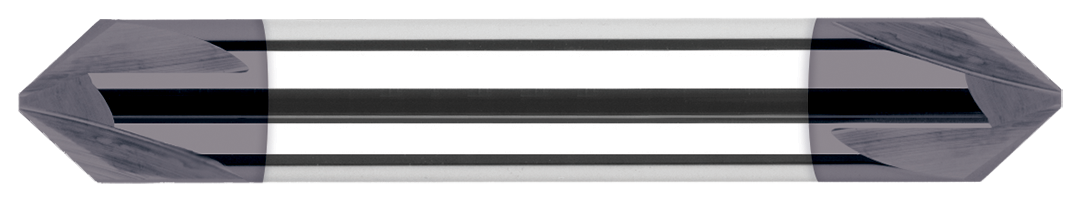

Chamfer Cutter - Pointed - Double-Ended
Specifications
| Type | III |
|---|---|
| Short Description | 0.1875" (3/16) Shank DIA x 45° per side DE- 4 FL - AlTiN Coated |
| Long Description | 0.1875" (3/16) Shank DIA x 45° per side Carbide Pointed Chamfer Cutter DE, 4 Flutes, AlTiN Coated |
| Included Angle | 90 |
| Angle per Side | 45 |
| Metric | N |
| Coating | C3 |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 4 |
| Weight | 0.026 |
| Double Ended | Y |
| Overall Length | 2.0000" (2) |
| Profile | Pointed |
| Length of Cut | 0.0730" |
