Harvey Tool
756424

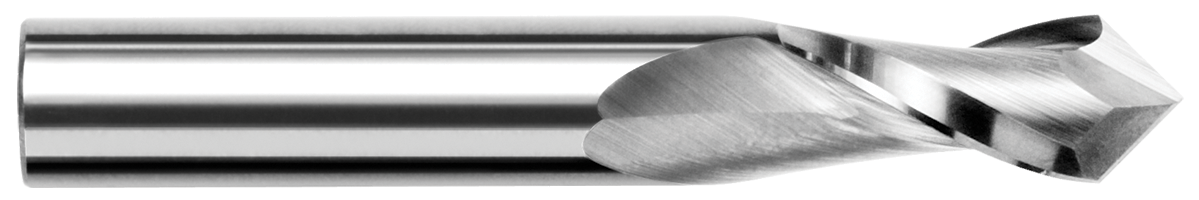

Drill/End Mill - Mill Style - 2 Flute
Specifications
| Long Description | 0.3750" (3/8) Cutter DIA x 0.8750" (7/8) Length of Cut x 135° included Carbide Drill/End Mill, 2 Flutes |
|---|---|
| Short Description | 0.3750" (3/8) Cutter DIA x 0.8750" (7/8) LOC x 135° included - 2 FL |
| Shank Diameter | 0.3750" (3/8) |
| Flutes | 2 |
| LOC Multiple | (2x) |
| Weight | 0.119 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.3750" (3/8) |
| Profile | Mill Style |
| Metric | N |
| Coating | UN |
| Length of Cut | 0.8750" (7/8) |
| Angle per Side | 67.5 |
| Included Angle | 135 |
