Harvey Tool
756816-C4

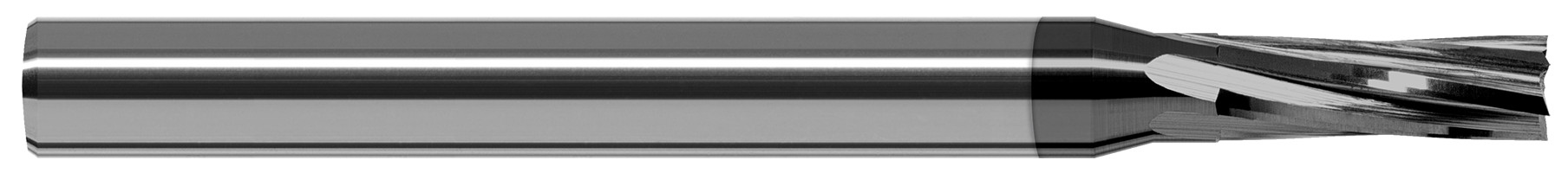

End Mill for Composites - Composite Finisher
Specifications
| Type | II |
|---|---|
| Long Description | 0.2500" (1/4) Cutter DIA x 0.7500" (3/4) Length of Cut Carbide Square Chipbreaker Cutter, 5 Flutes, Amorphous Diamond Coated |
| Short Description | 5 FL - 0.2500" (1/4) Cutter DIA x 0.7500" (3/4) LOC - Amorphous Diamond Coated |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 5 |
| LOC Multiple | (3x) |
| Weight | 0.057 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.2500" (1/4) |
| Profile | Square |
| Metric | N |
| Coating | C4 |
| Length of Cut | 0.7500" (3/4) |
