Harvey Tool
758478-C3

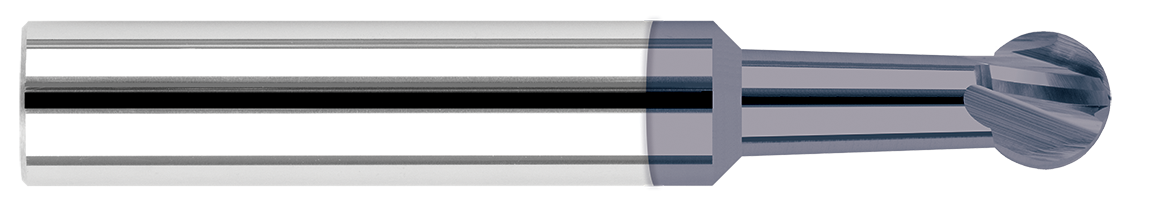

Undercutting End Mill - 270°
Specifications
| Type | II |
|---|---|
| Long Description | 0.0781" (5/64) Cutter DIA x 0.0930" (3/32) Neck Length x 270° Carbide Undercutting End Mill, 2 Flutes, AlTiN Coated |
| Short Description | 0.0781" (5/64) Cutter DIA x 0.0930" (3/32) Neck Length x 270° Wrap Angle - 2 FL - AlTiN Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 2 |
| Weight | 0.009 |
| Neck Angle | 1.5 |
| Wrap Angle | 270 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0781" (5/64) |
| Profile | Spherical |
| Metric | N |
| Neck Diameter | 0.0450" |
| Neck Length | 0.0930" (3/32) |
| Coating | C3 |
| Length of Cut | 0.0666" |
| Radius | 0.0391" |
