Harvey Tool
759530
HT - 759530
Specifications
| Coating/Finish | UN |
|---|---|
| Type | I |
| Overall Length (Inch) | 2-1/2 |
| Diameter (Inch) | 5/16 |
| Short Description | 0.3120" (5/16) Cutter DIA x 0.0620" (1/16) Width x 0.4690" Neck Length - Standard Slotting - 6 FL |

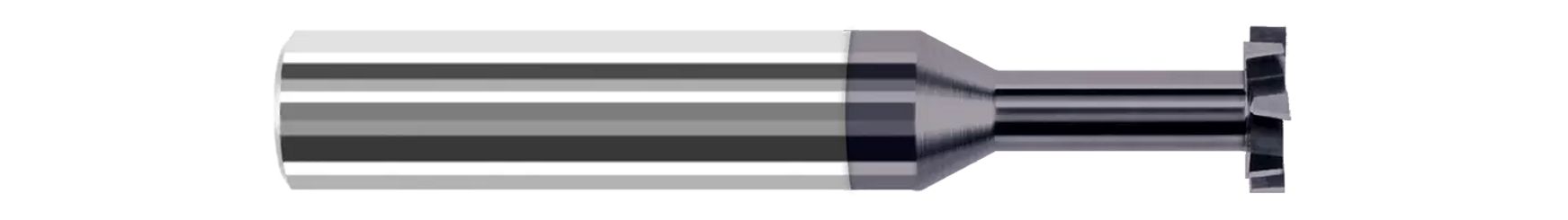

| Long Description | 0.3120" (5/16) Cutter DIA x 0.0620" (1/16) Width x 0.4690" Neck Length CarbideSquare Standard Stagger Keyseat Cutter, 6 Flutes |
| Cutter Width | 1/16 Inch |
| Shank Size (Fraction) | 5/16 Inch |
| Neck Diameter | 5/32 Inch |
| Cutter Width (Decimal) | 0.06 |
| Shank Size (Decimal) | 0.32 |
| Neck Diameter (Decimal) | 0.16 |
| Number Of Flutes | 6 |
| Neck Length (Decimal) | 0.47 |
| Radial Depth of Cut (Decimal) | 0.07 |
| Reach Multiple | 1.5x |
| Base Item Number | 759530 |
| Neck Diameter (Inch) | 0.16 |
| Product Type | Industrial Supplies |
