Harvey Tool
762210-C3

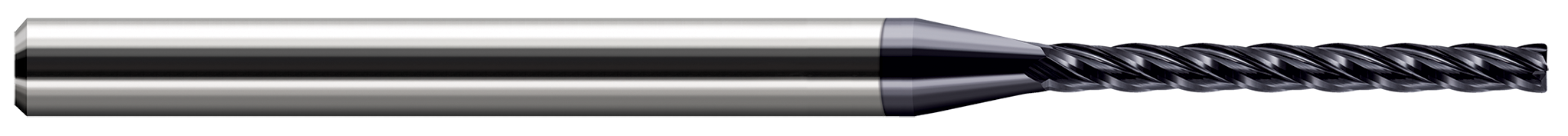

Miniature End Mill - Corner Radius - Long Flute
Specifications
| Long Description | 0.1250" (1/8) Cutter DIA x 0.0100" Radius x 1.2500" (1-1/4) Length of Cut Carbide Corner Radius End Mill, 4 Flutes, AlTiN Coated |
|---|---|
| Short Description | 4 FL - 0.1250" (1/8) Cutter DIA x 0.0100" Radius x 1.2500" (1-1/4) LOC - AlTiN Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (10x) |
| Weight | 0.018 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Corner Radius |
| Metric | N |
| Coating | C3 |
| Length of Cut | 1.2500" (1-1/4) |
| Corner Radius | 0.0100" |
