Harvey Tool
76405

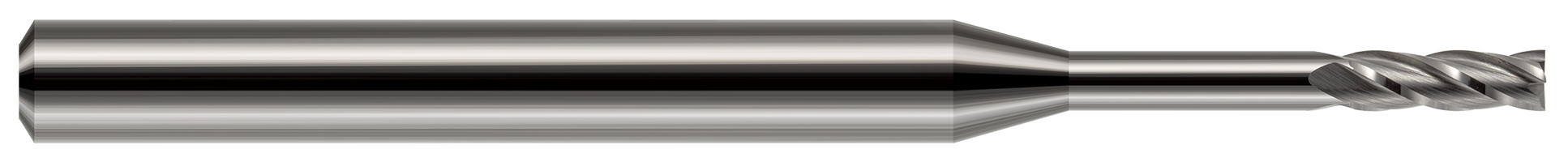

Miniature End Mill - 4 Flute - Square
Specifications
| Long Description | 0.0050" Cutter DIA x 0.0150" (1/64) Length of Cut x 0.0400" Reach Carbide Square End Mill, 4 Flutes |
|---|---|
| Short Description | 4 FL - 0.0050" Cutter DIA x 0.0150" (1/64) LOC x 0.0400" Reach |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (3x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0050" |
| Profile | Square |
| Reach Multiple | (8x) |
| Metric | N |
| Neck Diameter | 0.0045" |
| Neck Length | 0.0250" |
| Coating | UN |
| Length of Cut | 0.0150" (1/64) |
