Harvey Tool
764601

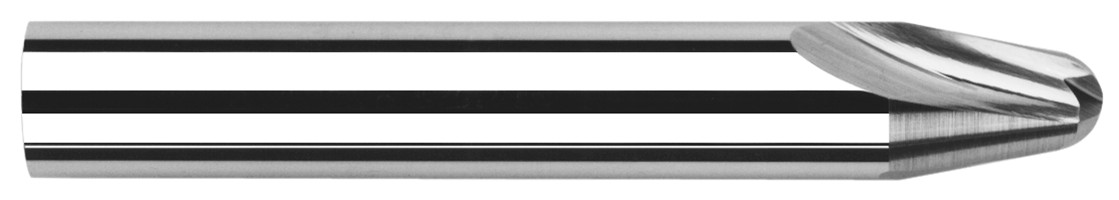

Runner Cutter
Specifications
| Short Description | 0.0200" Radius x 0.3650" LOC x 7° per side - 2 FL |
|---|---|
| Long Description | 0.0200" Radius x 0.3650" Length of Cut x 7° per side Carbide Runner Cutter, 2 Flutes |
| Included Angle | 14 |
| Angle per Side | 7 |
| Metric | N |
| Coating | UN |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 2 |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Profile | Ball |
| Length of Cut | 0.3650" |
| Radius | 0.0200" |
