Harvey Tool
764708
HT - 764708
Specifications
| Overall Length (Inch) | 1-1/2 |
|---|---|
| Type | II |
| Length Of Cut (Inch) | 0.11 |
| Coating/Finish | UN |
| Short Description | 0.1250" (1/8) Shank DIA x 0.0050" Flat x 60° included - 1 FL |

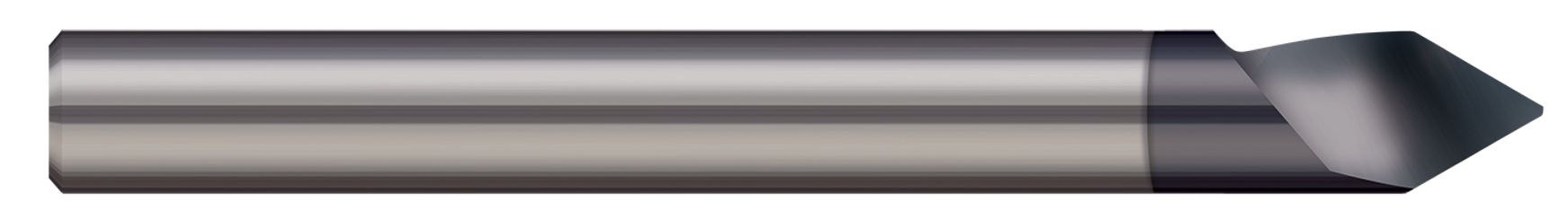

| Long Description | 0.1250" (1/8) Shank DIA x 0.0050" Flat x 60° included Carbide Helical Tipped Engraver, 1 Flute |
| Metric | No |
| Shank Size | 1/8 Inch |
| Included Angle | 60 Degrees |
| Shank Size (Decimal) | 0.13 |
| Number Of Flutes | 1 |
| Flat on Part (Decimal) | 0.005 |
| Split Length (Decimal) | 0.07 |
| Split Length (Fraction) | 1/16 |
| Angle per Side | 30 Degrees |
| Base Item Number | 764708 |
| Product Type | Industrial Supplies |
