Harvey Tool
771375-C3

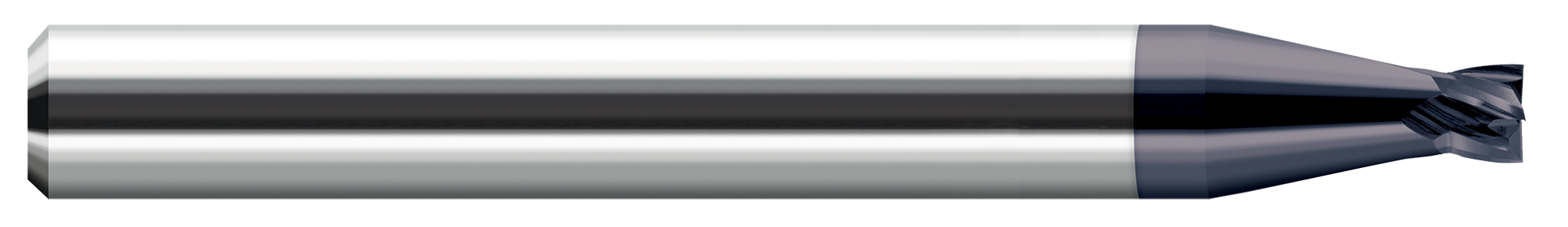

Miniature End Mill - Square - Stub & Standard
Specifications
| Long Description | 0.0750" (1.9 mm) Cutter DIA x 0.0600" Length of Cut Carbide Square End Mill, 4 Flutes, AlTiN Coated |
|---|---|
| Short Description | 4 FL - 0.0750" (1.9 mm) Cutter DIA x 0.0600" LOC - AlTiN Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (0.8x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0750" (1.9 mm) |
| Profile | Square |
| Metric | N |
| Coating | C3 |
| Length of Cut | 0.0600" |
