Harvey Tool
771850

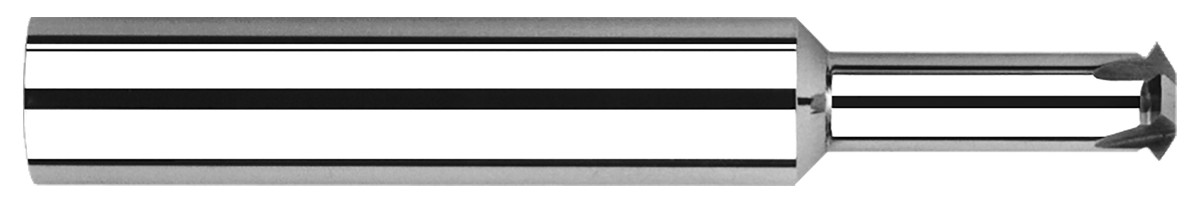

Thread Milling Cutter - Single Form - UN Threads
Specifications
| Short Description | #1/4 - 0.1800" Cutter DIA x 1.1250" (1-1/8) Reach - 4 FL |
|---|---|
| Long Description | 0.1800" Cutter DIA x 1.1250" (1-1/8) Reach Carbide Single Form #1/4 Thread Milling Cutter, 4 Flutes |
| Included Angle | 60 |
| Angle per Side | 30 |
| Metric | N |
| Size | 1/4 |
| Coating | UN |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 4 |
| Weight | 0.042 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.1800" |
| Profile | Single Form |
| Neck Diameter | 0.1150" |
| Length of Cut | 0.0380" |
