Harvey Tool
772252

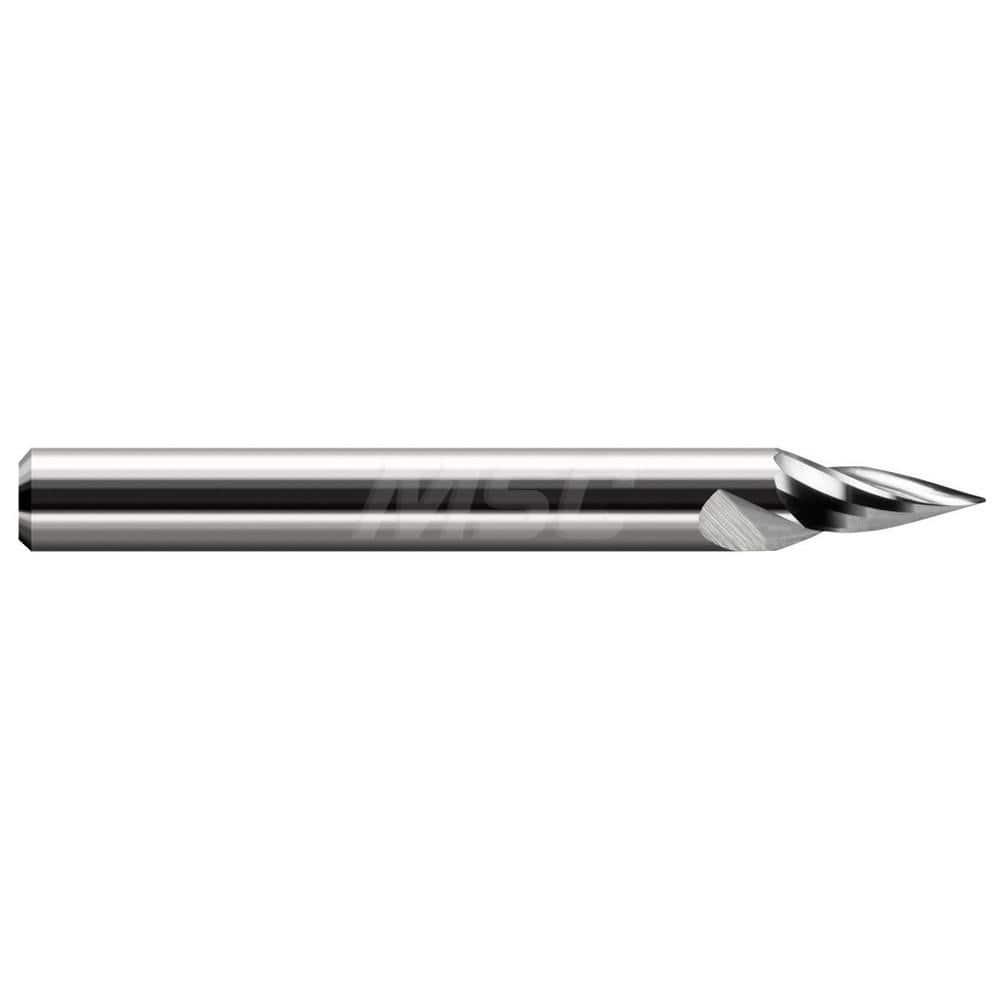

Runner Cutter - For Non-Ferrous Materials
Specifications
| Coating | UN |
|---|---|
| Long Description | 0.0100" Radius x 0.2050" Length of Cut x 15° per side Carbide Runner Cutter, 2 Flutes |
| Shank Diameter | 0.1250" (1/8) |
| Short Description | 0.0100" Radius x 0.2050" LOC x 15° per side - 2 FL |
| Weight | 0.009 |
| Flutes | 2 |
| Overall Length | 1.5000" (1-1/2) |
| Profile | Ball |
| Metric | N |
| Length of Cut | 0.2050" |
| Angle per Side | 15 |
| Included Angle | 30 |
| Radius | 0.0100" |
