Harvey Tool
772906-C3

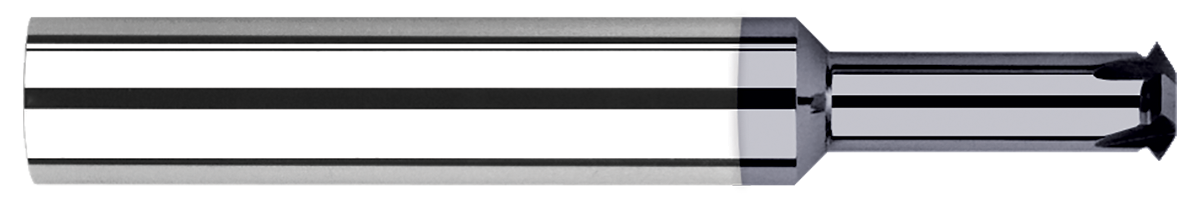

Thread Milling Cutter - Single Form - UN Threads
Specifications
| Short Description | #2 - 0.0640" Cutter DIA x 0.1250" (1/8) Reach - 2 FL - AlTiN Coated |
|---|---|
| Long Description | 0.0640" Cutter DIA x 0.1250" (1/8) Reach Carbide Single Form #2 Thread Milling Cutter, 2 Flutes, AlTiN Coated |
| Included Angle | 60 |
| Angle per Side | 30 |
| Metric | N |
| Size | 2 |
| Coating | C3 |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 2 |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0640" |
| Profile | Single Form |
| Neck Diameter | 0.0380" |
| Length of Cut | 0.0150" (1/64) |
