Harvey Tool
774930-C8
HT - 774930-C8
Specifications
| Overall Length (Inch) | 2-1/2 |
|---|---|
| Length Of Cut (Inch) | 0.22 |
| Coating/Finish | C8 |
| Short Description | 0.2500" (1/4) Shank DIA x 0.0050" Radius x 60° included - 2 FL - TiB2 Coated |

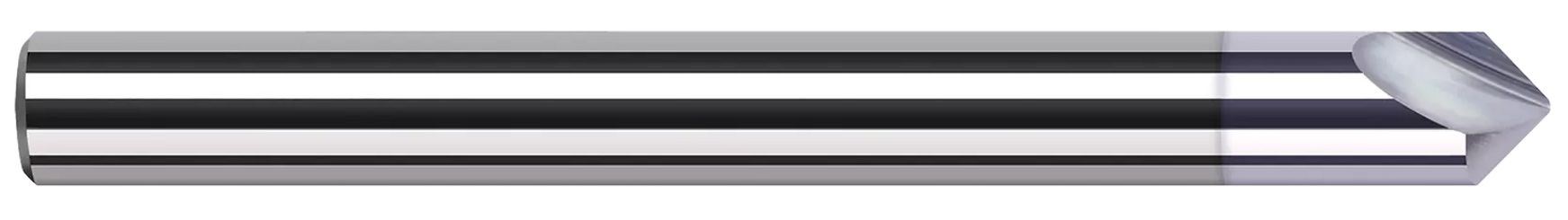

| Long Description | 0.2500" (1/4) Shank DIA x 0.0050" Radius x 60° included Carbide Marking Cutter for Non-Ferrous, 2 Flutes, TiB2 Coated |
| Metric | No |
| Shank Size | 1/4 Inch |
| Included Angle | 60 Degrees |
| Shank Size (Decimal) | 0.25 |
| Number Of Flutes | 2 |
| Radius (Decimal) | 0.005 |
| Web Thickness (Decimal) | 0.005 |
| Angle per Side | 30 Degrees |
| Base Item Number | 774930-C8 |
| Product Type | Industrial Supplies |
