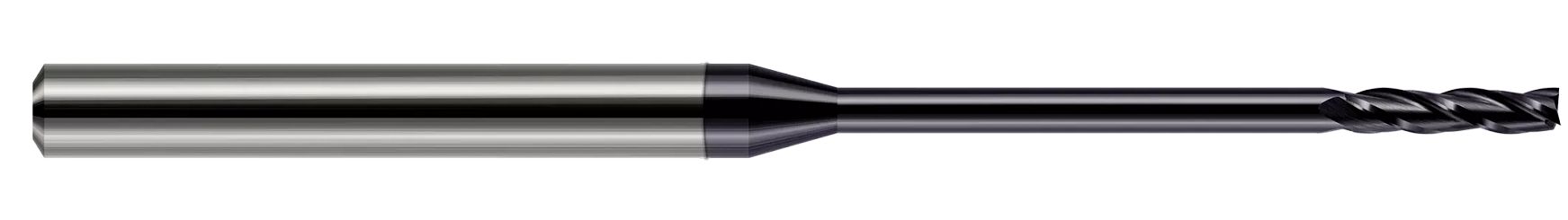

Harvey Tool
776093-C3
HT - 776093-C3
Specifications
| Shank Size (Inch) | 1/8 |
|---|---|
| Overall Length (Inch) | 2-1/2 |
| Length Of Cut (Inch) | 1/2 |
| Number Of Flutes | 4 |
| Coating/Finish | C3 |
| Diameter (Inch) | 3/32 |
| Neck Diameter (Decimal) | 0.10 |
| Shank Diameter | 0.1250" (1/8) |
| Overall Length | 2.5000" (2-1/2) |
| Metric | No |
| Length of Cut (Decimal) | 0.5 |
| LOC Multiple | 5x |
| Overall Reach (Decimal) | 1.25 |
| Overall Reach (Fraction) | 1-1/4 |
| Reach Multiple | 13x |
| Length of Cut | 0.5000" (1/2) |
| Base Item Number | 776093-C3 |
| Neck Diameter (Inch) | 0.1 |
| Product Type | Industrial Supplies |
| Weight | 0.013 |
| Cutter Diameter | 0.0930" (3/32) |
| Profile | Square |
| Neck Diameter | 0.0915" |
