Harvey Tool
776562

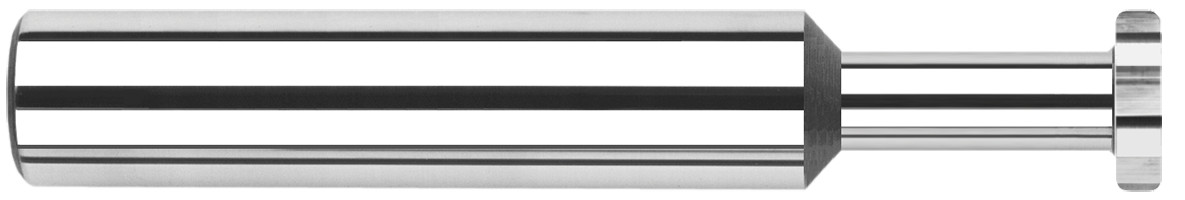

Keyseat Cutter - Corner Radius
Specifications
| Type | I |
|---|---|
| Short Description | 0.3125" (5/16) Cutter DIA x 0.0200" Radius x 0.0620" (1/16) Width x 0.4680" (15/32) Neck Length - Standard Slotting - 6 FL |
| Long Description | 0.3125" (5/16) Cutter DIA x 0.0200" Radius x 0.0620" (1/16) Width x 0.4680" (15/32) Neck Length CarbideCorner Radius Standard Keyseat Cutter, 6 Flutes |
| Cutter Width | 0.0620" (1/16) |
| Neck Diameter | 0.1560" (5/32) |
| Reach Multiple | (1.5x) |
| Top Corner Radius | 0.02 |
| Shank Diameter | 0.3125" (5/16) |
| Flutes | 6 |
| Weight | 0.084 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.3125" (5/16) |
| Profile | Corner Radius |
| Metric | N |
| Neck Length | 0.4680" (15/32) |
| Coating | UN |
| Corner Radius | 0.0200" |
