Harvey Tool
776762-C3

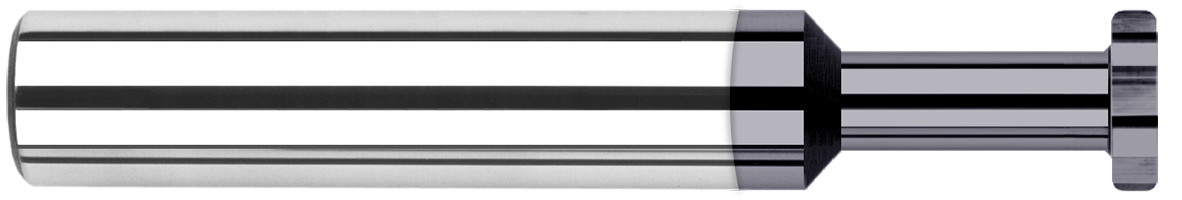

Keyseat Cutter - Corner Radius
Specifications
| Type | I |
|---|---|
| Short Description | 0.2500" (1/4) Cutter DIA x 0.0200" Radius x 0.0620" (1/16) Width x 0.3750" (3/8) Neck Length - Standard Slotting - 6 FL - AlTiN Coated |
| Long Description | 0.2500" (1/4) Cutter DIA x 0.0200" Radius x 0.0620" (1/16) Width x 0.3750" (3/8) Neck Length CarbideCorner Radius Standard Keyseat Cutter, 6 Flutes, AlTiN Coated |
| Cutter Width | 0.0620" (1/16) |
| Neck Diameter | 0.1250" (1/8) |
| Reach Multiple | (1.5x) |
| Top Corner Radius | 0.02 |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 6 |
| Weight | 0.057 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.2500" (1/4) |
| Profile | Corner Radius |
| Metric | N |
| Neck Length | 0.3750" (3/8) |
| Coating | C3 |
| Corner Radius | 0.0200" |
