Harvey Tool
778032
HT - 778032
Specifications
| Overall Length (Inch) | 3 |
|---|---|
| Diameter (Inch) | 1/2 |
| Coating/Finish | UN |
| Neck Diameter (Decimal) | 0.32 |
| Short Description | 0.5000" (1/2) Cutter DIA x 0.1190" Width x 0.5000" (1/2) Neck Length - 60° Included Angle - 6 FL |

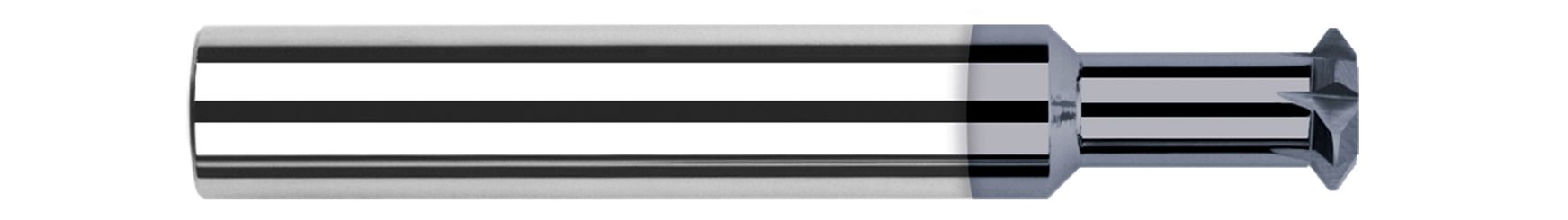

| Long Description | 0.5000" (1/2) Cutter DIA x 0.1190" Width x 0.5000" (1/2) Neck Length Carbide Double Angle Shank Cutter, 6 Flutes |
| Shank Size | 1/2 Inch |
| Included Angle | 60 Degrees |
| Shank Size (Decimal) | 0.5 |
| Number Of Flutes | 6 |
| Neck Diameter (Fraction) | 5/16 |
| Neck Length (Decimal) | 0.5 |
| Neck Length (Fraction) | 1/2 |
| Angle per Side | 30 Degrees |
| Metric | No |
| Cutter Width | 0.12 Inch |
| Tip Flat (Decimal) | 0.01 |
| Base Item Number | 778032 |
| Neck Diameter (Inch) | 0.32 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.5000" (1/2) |
| Weight | 0.265 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.5000" (1/2) |
| Profile | Tip Flat |
| Neck Diameter | 0.3120" (5/16) |
| Neck Length | 0.5000" (1/2) |
