Harvey Tool
779793
HT - 779793
Specifications
| Overall Length (Inch) | 2-1/2 |
|---|---|
| Diameter (Inch) | 3/32 |
| Length Of Cut (Inch) | 0.14 |
| Coating/Finish | UN |
| Corner Radius (Decimal) | 0.005 |
| Neck Diameter (Decimal) | 0.09 |

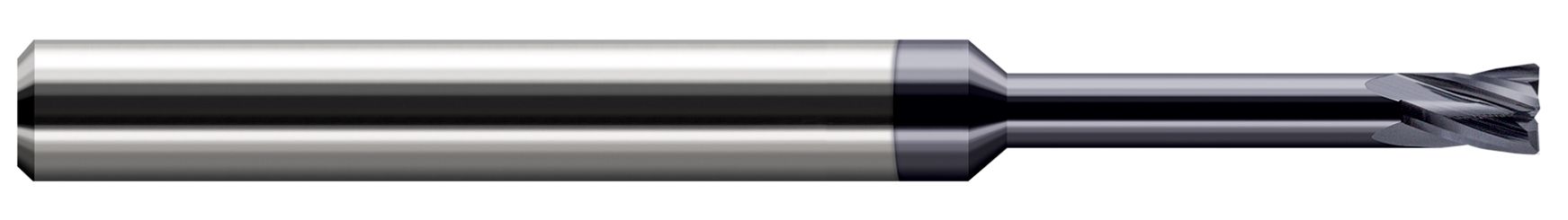

| Short Description | 4 FL - 0.0930" (3/32) Cutter DIA x 0.0050" Radius x 0.1390" LOC x 0.5000" (1/2) Reach |
| Long Description | 0.0930" (3/32) Cutter DIA x 0.0050" Radius x 0.1390" Length of Cut x 0.5000" (1/2) Reach Carbide Corner Radius Backdraft Cutter, 4 Flutes |
| Shank Size | 1/8 Inch |
| Included Angle | 4.0 Degrees |
| Shank Size (Decimal) | 0.13 |
| Number Of Flutes | 4 |
| Angle per Side | 2 Degrees |
| Metric | No |
| LOC Multiple | 1.5x |
| Overall Reach (Decimal) | 0.5 |
| Overall Reach (Fraction) | 1/2 |
| Reach Multiple | 5x |
| Base Item Number | 779793 |
| Neck Diameter (Inch) | 0.09 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.015 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0930" (3/32) |
| Profile | Corner Radius |
| Neck Diameter | 0.0810" |
| Length of Cut | 0.1390" |
| Corner Radius | 0.0050" |
