Harvey Tool
781408
HT - 781408
Specifications
| Overall Length (Inch) | 2-1/2 |
|---|---|
| Diameter (Inch) | 1/8 |
| Length Of Cut (Inch) | 3/16 |
| Coating/Finish | UN |
| Neck Diameter (Decimal) | 0.12 |
| Short Description | 4 FL - 0.1250" (1/8) Cutter DIA x 0.1870" (3/16) LOC x 0.6250" (5/8) Reach |

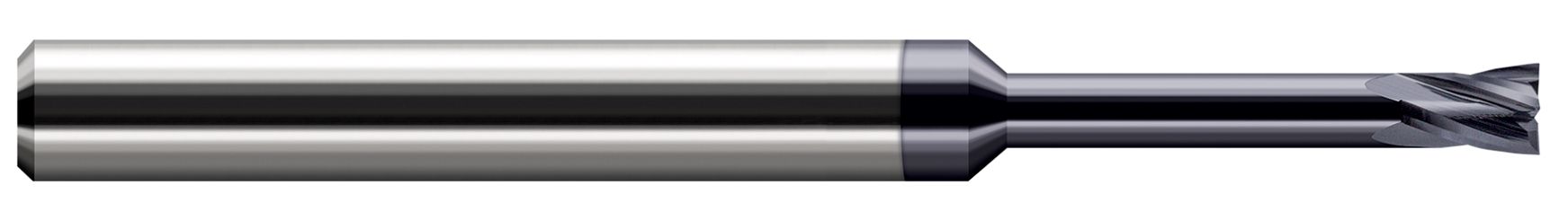

| Long Description | 0.1250" (1/8) Cutter DIA x 0.1870" (3/16) Length of Cut x 0.6250" (5/8) Reach Carbide Square Backdraft Cutter, 4 Flutes |
| Shank Size | 1/8 Inch |
| Included Angle | 1 Degrees |
| Shank Size (Decimal) | 0.13 |
| Number Of Flutes | 4 |
| Angle per Side | 0.5 Degrees |
| Metric | No |
| Length of Cut (Decimal) | 0.19 |
| LOC Multiple | 1.5x |
| Overall Reach (Decimal) | 0.63 |
| Overall Reach (Fraction) | 5/8 |
| Reach Multiple | 5x |
| Base Item Number | 781408 |
| Neck Diameter (Inch) | 0.12 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.015 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Square |
| Neck Diameter | 0.1170" |
| Length of Cut | 0.1870" (3/16) |
