Harvey Tool
784812

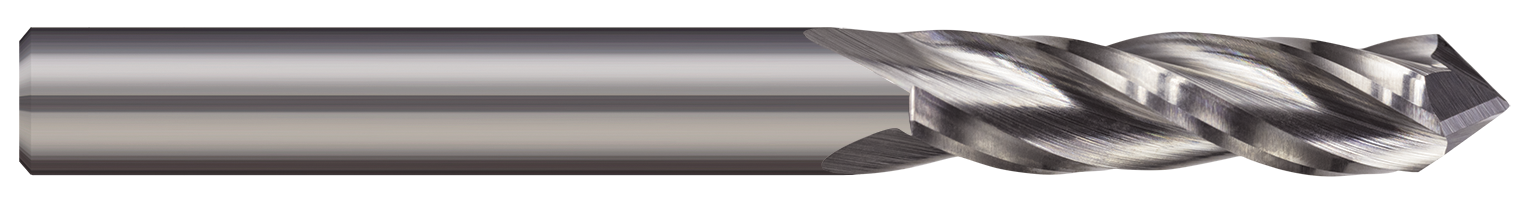

Drill/End Mill - Mill Style - 3 Flute
Specifications
| Long Description | 0.1875" (3/16) Cutter DIA x 0.6250" (5/8) Length of Cut x 60° included Carbide Drill/End Mill, 3 Flutes |
|---|---|
| Short Description | 0.1875" (3/16) Cutter DIA x 0.6250" (5/8) LOC x 60° included - 3 FL |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 3 |
| LOC Multiple | (3x) |
| Weight | 0.024 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.1875" (3/16) |
| Profile | Mill Style |
| Metric | N |
| Coating | UN |
| Length of Cut | 0.6250" (5/8) |
| Angle per Side | 30 |
| Included Angle | 60 |
