Harvey Tool
784816-C3
HT - 784816-C3
Specifications
| Coating/Finish | C3 |
|---|---|
| Overall Length (Inch) | 2-1/2 |
| Number Of Flutes | 3 |
| Length Of Cut (Inch) | 3/4 |

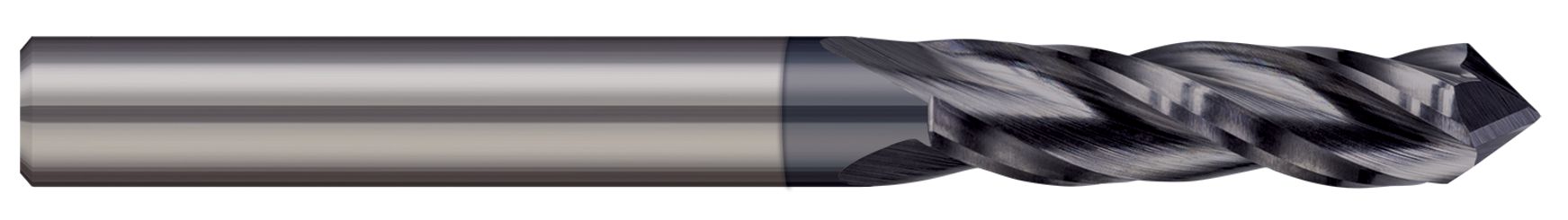

| Short Description | 0.2500" (1/4) Cutter DIA x 0.7500" (3/4) LOC x 60° included - 3 FL - AlTiN Coated |
| Long Description | 0.2500" (1/4) Cutter DIA x 0.7500" (3/4) Length of Cut x 60° included Carbide Drill/End Mill, 3 Flutes, AlTiN Coated |
| Shank Size | 1/4 Inch |
| Cutter Diameter (Fraction) | 1/4 |
| Included Angle | 60 Degrees |
| LOC Multiple | 3x |
| Angle per Side | 30 Degrees |
| Base Item Number | 784816-C3 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.2500" (1/4) |
| Weight | 0.055 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.2500" (1/4) |
| Profile | Mill Style |
| Metric | N |
| Length of Cut | 0.7500" (3/4) |
