Harvey Tool
784916-C3
HT - 784916-C3
Specifications
| Length Of Cut (Inch) | 0.12 |
|---|---|
| Overall Length (Inch) | 2-1/2 |
| Type | II |
| Coating/Finish | C3 |
| Number Of Flutes | 5 |
| Short Description | 0.2500" (1/4) Shank DIA x 45° per side DE- 5 Helical FL - AlTiN Coated |
| Double Ended | Yes |
| Shank Size | 1/4 Inch |
| Overall Length | 2.5000" (2-1/2) |
| Shank Size (Decimal) | 0.25 |

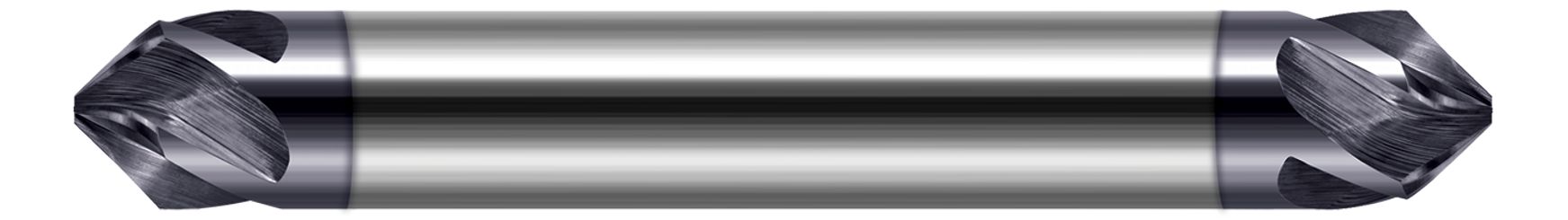

| Long Description | 0.2500" (1/4) Shank DIA x 45° per side Carbide Flat Chamfer Cutter DE, 5 Helical Flutes, AlTiN Coated |
| Metric | No |
| Included Angle | 90 Degrees |
| Angle per Side | 45 Degrees |
| Tip (Decimal) | 0.06 |
| Length of Cut | 0.0950" |
| Base Item Number | 784916-C3 |
| Product Type | Industrial Supplies |
| Weight | 0.062 |
| Shank Diameter | 0.2500" (1/4) |
| Profile | Flat |
