Harvey Tool
785008

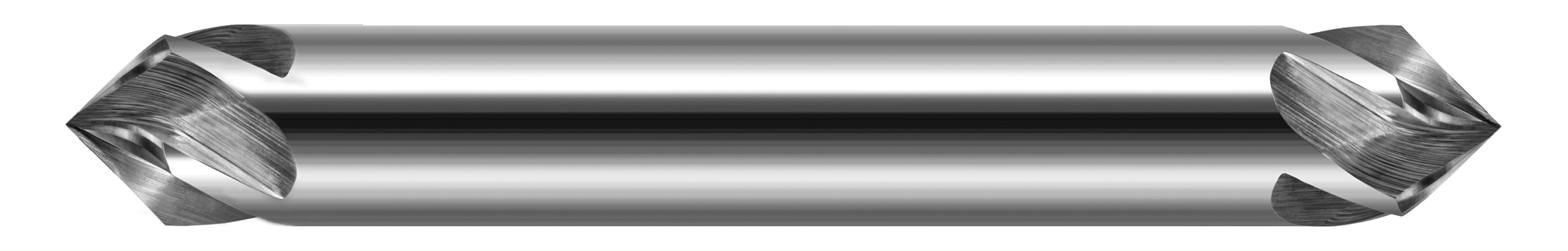

Chamfer Cutter - Pointed - Helical Flutes
Specifications
| Type | I |
|---|---|
| Short Description | 0.1250" (1/8) Shank DIA x 45° per side DE- 4 Helical FL |
| Long Description | 0.1250" (1/8) Shank DIA x 45° per side Carbide Pointed Chamfer Cutter DE, 4 Helical Flutes |
| Included Angle | 90 |
| Angle per Side | 45 |
| Metric | N |
| Coating | UN |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| Weight | 0.009 |
| Double Ended | Y |
| Overall Length | 1.5000" (1-1/2) |
| Profile | Pointed |
| Length of Cut | 0.0580" |
