Harvey Tool
786247-C6

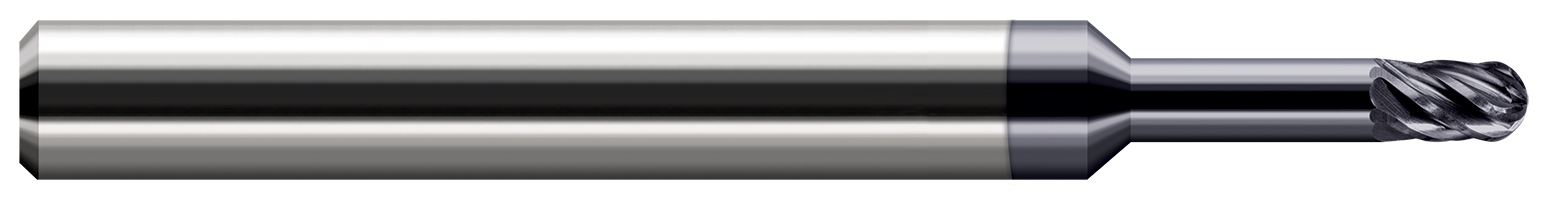

End Mill for Hardened Steels - Ball
Specifications
| Long Description | 0.0470" (3/64) Cutter DIA x 0.0710" Length of Cut x 0.2500" (1/4) Reach Carbide Ball End Mill for Hard Milling, 6 Flutes, AlTiN Nano Coated |
|---|---|
| Short Description | 6 FL - 0.0470" (3/64) Cutter DIA x 0.0710" LOC x 0.2500" (1/4) Reach - AlTiN Nano Coated |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 6 |
| LOC Multiple | (1.5x) |
| Weight | 0.051 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0470" (3/64) |
| Profile | Ball |
| Reach Multiple | (5x) |
| Metric | N |
| Neck Diameter | 0.0455" |
| Coating | C6 |
| Length of Cut | 0.0710" |
