Harvey Tool
797547-C6

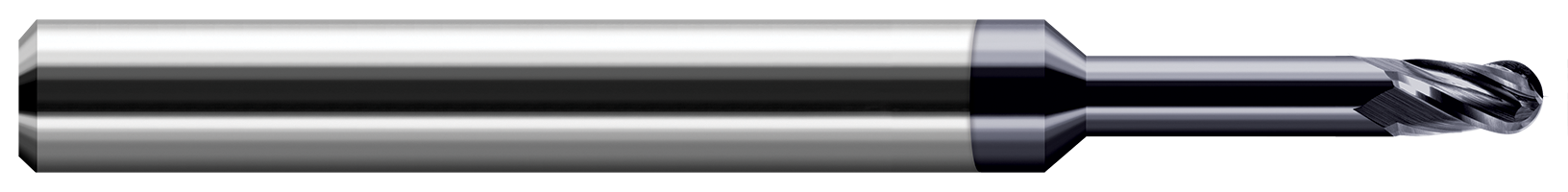

End Mill for High Temp - Ball
Specifications
| Long Description | 0.0470" (3/64) Cutter DIA x 0.0700" Length of Cut x 0.2810" (9/32) Reach Carbide Ball End Mill for Exotic Alloys, 4 Flutes, AlTiN Nano Coated |
|---|---|
| Short Description | 4 FL - 0.0470" (3/64) Cutter DIA x 0.0700" LOC x 0.2810" (9/32) Reach - AlTiN Nano Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (1.5x) |
| Weight | 0.013 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0470" (3/64) |
| Profile | Ball |
| Reach Multiple | (6x) |
| Metric | N |
| Neck Diameter | 0.0455" |
| Coating | C6 |
| Length of Cut | 0.0700" |
