Harvey Tool
798524

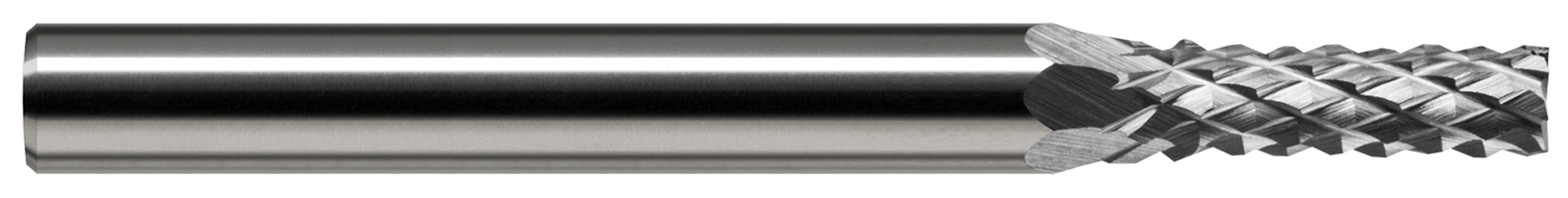

End Mill for Composites - Diamond Cut - Bur Style
Specifications
| Long Description | 0.3750" (3/8) Cutter DIA x 1.1250" (1-1/8) Length of Cut Carbide Diamond Cut End Mill, 11 RH Teeth, 13 LH Teeth |
|---|---|
| Short Description | 11 RH Teeth, 13 LH Teeth - 0.3750" (3/8) Cutter DIA x 1.1250" (1-1/8) LOC |
| Shank Diameter | 0.3750" (3/8) |
| LOC Multiple | (3x) |
| Weight | 0.13 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.3750" (3/8) |
| Profile | Square |
| Metric | N |
| Coating | UN |
| Length of Cut | 1.1250" (1-1/8) |
| Right Hand Teeth | 11 |
| Left Hand Teeth | 13 |
