Harvey Tool
800830-C3

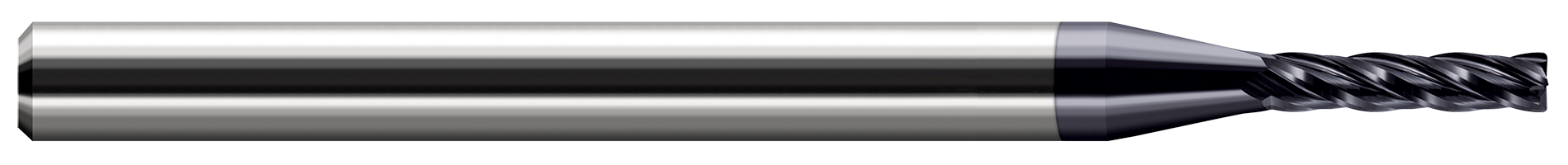

Miniature End Mill - Corner Radius - Long Flute
Specifications
| Long Description | 0.3750" (3/8) Cutter DIA x 0.0300" Radius x 2.0000" (2) Length of Cut Carbide Corner Radius End Mill, 4 Flutes, AlTiN Coated |
|---|---|
| Short Description | 4 FL - 0.3750" (3/8) Cutter DIA x 0.0300" Radius x 2.0000" (2) LOC - AlTiN Coated |
| Shank Diameter | 0.3750" (3/8) |
| Flutes | 4 |
| LOC Multiple | (5x) |
| Weight | 0.187 |
| Overall Length | 4.0000" (4) |
| Cutter Diameter | 0.3750" (3/8) |
| Profile | Corner Radius |
| Metric | N |
| Coating | C3 |
| Length of Cut | 2.0000" (2) |
| Corner Radius | 0.0300" |
