Harvey Tool
801808

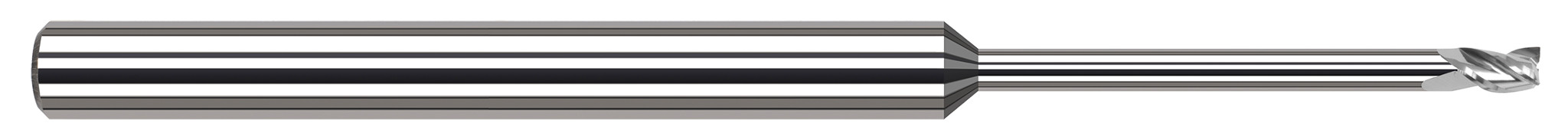

Miniature End Mill - 4 Flute - Square
Specifications
| Long Description | 0.1250" (1/8) Cutter DIA x 0.1870" (3/16) Length of Cut x 1.5000" (1-1/2) Reach Carbide Square End Mill, 4 Flutes |
|---|---|
| Short Description | 4 FL - 0.1250" (1/8) Cutter DIA x 0.1870" (3/16) LOC x 1.5000" (1-1/2) Reach |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (1.5x) |
| Weight | 0.018 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Square |
| Reach Multiple | (12x) |
| Metric | N |
| Neck Diameter | 0.1210" |
| Coating | UN |
| Length of Cut | 0.1870" (3/16) |
