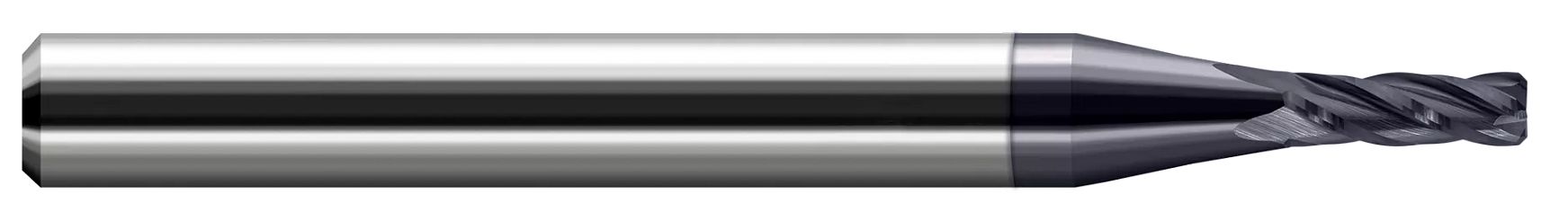

Harvey Tool
805193
HT - 805193
Specifications
| Length Of Cut (Inch) | 0.28 |
|---|---|
| Overall Length (Inch) | 1-1/2 |
| Coating/Finish | UN |
| Number Of Flutes | 4 |
| Double Ended | N |
| Chamfer Length (Decimal) | 0.005 |
| Diameter | 0.1 |
| Shank Size | 1/8 Inch |
| Overall Length | 1-1/2 Inch |
| Shank Size (Decimal) | 0.13 |
| Chamfer Length | 0.0050" |
| Metric | No |
| Angle per Side | 45 Degrees |
| Center Cutting | false |
| Length of Cut | 0.28 Inch |
| LOC Multiple | 3x |
| Coolant Through | N |
| Base Item Number | 805193 |
| Product Type | Industrial Supplies |
| Weight | 0.009 |
| Shank Diameter | 0.1250" (1/8) |
| Cutter Diameter | 0.0930" (3/32) |
| Profile | Corner Chamfer |
