Harvey Tool
807002

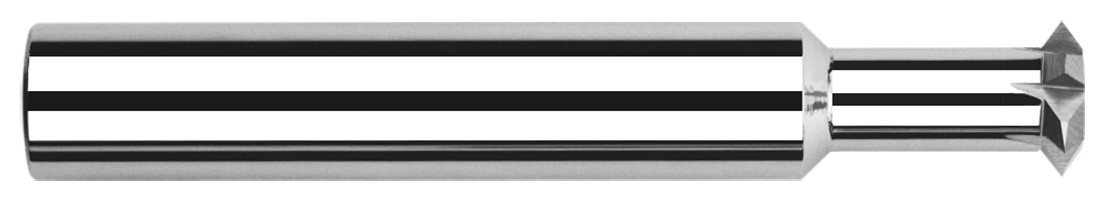

Double Angle Shank Cutter - Pointed
Specifications
| Type | I |
|---|---|
| Short Description | 0.0310" (1/32) Cutter DIA x 0.0150" (1/64) Width x 0.0620" (1/16) Neck Length - 90° Included Angle - 2 FL |
| Long Description | 0.0310" (1/32) Cutter DIA x 0.0150" (1/64) Width x 0.0620" (1/16) Neck Length Carbide Double Angle Shank Cutter, 2 Flutes |
| Included Angle | 90 |
| Angle per Side | 45 |
| Metric | N |
| Cutter Width | 0.0150" (1/64) |
| Coating | UN |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 2 |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0310" (1/32) |
| Profile | Pointed |
| Neck Diameter | 0.0160" (.4 mm) |
| Neck Length | 0.0620" (1/16) |
