Harvey Tool
812702-C6

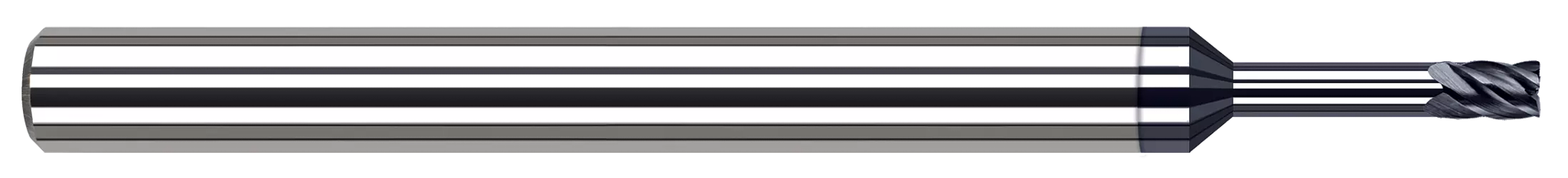

End Mill for Hardened Steels - Corner Radius
Specifications
| Long Description | 0.1090" (7/64) Cutter DIA x 0.0050" Radius x 0.1640" Length of Cut x 0.5700" Reach Carbide Corner Radius End Mill for Hard Milling, 5 Flutes, AlTiN Nano Coated |
|---|---|
| Short Description | 5 FL - 0.1090" (7/64) Cutter DIA x 0.0050" Radius x 0.1640" LOC x 0.5700" Reach - AlTiN Nano Coated |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 5 |
| LOC Multiple | (1.5x) |
| Weight | 0.049 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.1090" (7/64) |
| Profile | Corner Radius |
| Reach Multiple | (5x) |
| Metric | N |
| Neck Diameter | 0.1080" |
| Coating | C6 |
| Length of Cut | 0.1640" |
| Corner Radius | 0.0050" |
