Harvey Tool
819624
HT - 819624
Specifications
| Overall Length (Inch) | 2 |
|---|---|
| Diameter (Inch) | 0.09 |
| Length Of Cut (Inch) | 0.18 |
| Coating/Finish | UN |
| Short Description | M3-0.50 - 0.0850" Cutter DIA x 0.1780" LOC - 3 FL |

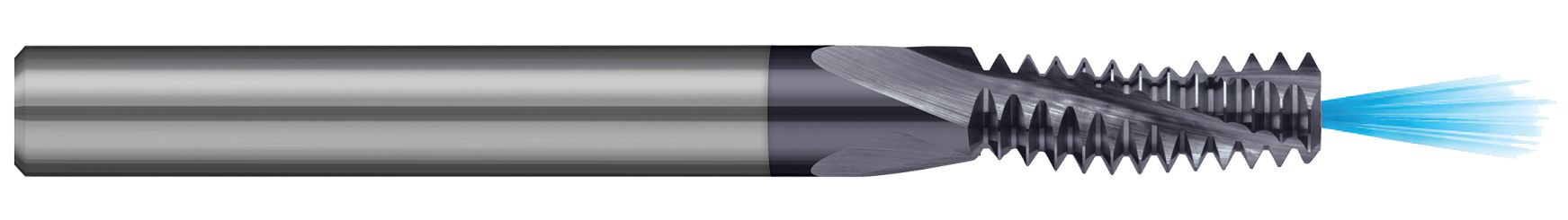

| Long Description | 0.0850" Cutter DIA x 0.1780" Length of Cut Carbide Multi-Form M3-0.50 Thread Milling Cutter Coolant Through, 3 Flutes |
| Shank Size | 1/8 Inch |
| Included Angle | 60 Degrees |
| Shank Size (Decimal) | 0.13 |
| Number Of Flutes | 3 |
| Metric | No |
| Size | M3-0.50 |
| Coolant Through | Yes |
| Base Item Number | 819624 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.011 |
| Double Ended | N |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.0850" |
| Profile | Multi-Form |
| Length of Cut | 0.1780" |
| Center Cutting | false |
