Harvey Tool
819862-C6
HT - 819862-C6
Specifications
| Overall Length (Inch) | 1-1/2 |
|---|---|
| Diameter (Inch) | 1/16 |
| Length Of Cut (Inch) | 0.06 |
| Coating/Finish | C6 |
| Neck Diameter (Decimal) | 0.04 |

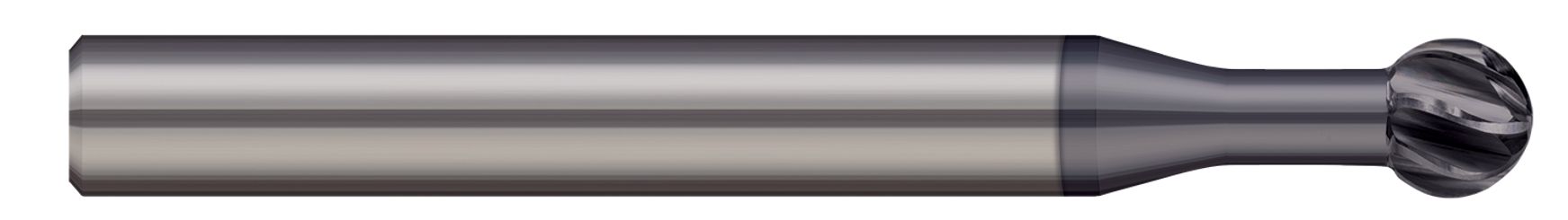

| Short Description | 0.0625" (1/16) Cutter DIA x 0.1250" (1/8) Neck Length x 270° Wrap Angle - 4 FL - AlTiN Nano Coated |
| Long Description | 0.0625" (1/16) Cutter DIA x 0.1250" (1/8) Neck Length x 270° Carbide Undercutting End Mill for Hardened Steels, 4 Flutes, AlTiN Nano Coated |
| Shank Size | 1/8 Inch |
| Shank Size (Decimal) | 0.13 |
| Number Of Flutes | 4 |
| Neck Length (Decimal) | 0.13 |
| Neck Length (Fraction) | 1/8 |
| Metric | No |
| Overall Reach (Decimal) | 0.18 |
| Radius (Decimal) | 0.04 |
| Coolant Through | No |
| Wrap Angle | 270 |
| Base Item Number | 819862-C6 |
| Neck Diameter (Inch) | 0.04 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.009 |
| Double Ended | N |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0625" (1/16) |
| Profile | Spherical |
| Neck Diameter | 0.0370" |
| Neck Length | 0.1250" (1/8) |
| Length of Cut | 0.0530" |
| Center Cutting | false |
| Radius | 0.0313" |
