Harvey Tool
820215-C3

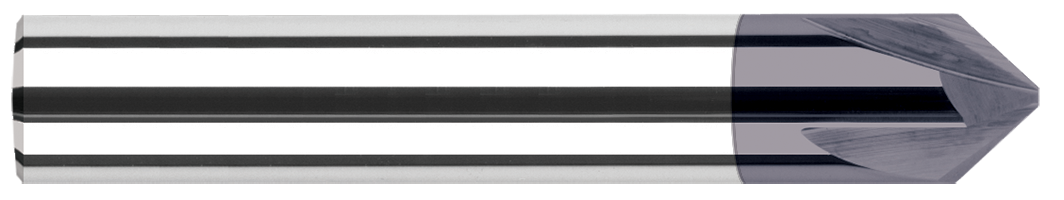

Chamfer Cutter - Flat End
Specifications
| Type | III |
|---|---|
| Short Description | 0.5000" (1/2) Shank DIA x 15° per side - 4 FL - AlTiN Coated |
| Long Description | 0.5000" (1/2) Shank DIA x 15° per side Carbide Flat Chamfer Cutter, 4 Flutes, AlTiN Coated |
| Included Angle | 30 |
| Angle per Side | 15 |
| Metric | N |
| Coating | C3 |
| Shank Diameter | 0.5000" (1/2) |
| Flutes | 4 |
| Weight | 0.245 |
| Overall Length | 3.0000" (3) |
| Profile | Flat |
| Length of Cut | 0.7830" |
| Center Cutting | true |
