Harvey Tool
820684-C8

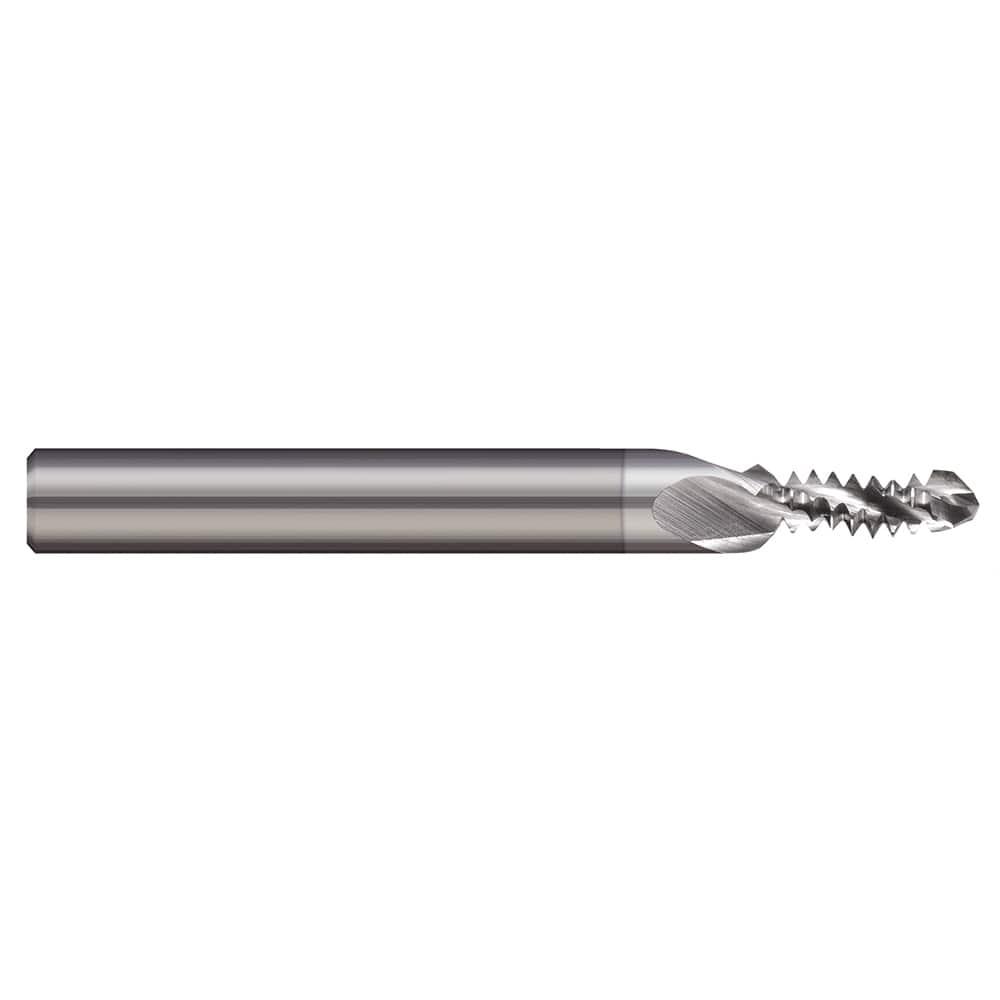

Combination Drill/Thread Mill
Specifications
| Short Description | 0.4251" Drill Diameter x 1.2790" Length of Cut Multi-Form 1/2-13 - 3 FL - TiB2 Coated |
|---|---|
| Point Angle | 130 |
| Long Description | 0.4251" Drill Diameter x 1.2790" Length of Cut Carbide Multi-Form 1/2-13 Combination Drill/Thread Mill, 3 Flutes, TiB2 Coated |
| Weight | 0.388 |
| Shank Diameter | 0.6250" (5/8) |
| Flutes | 3 |
| LOC Multiple | (3x) |
| Overall Length | 3.5000" (3-1/2) |
| Cutter Diameter | 0.3500" |
| Profile | Drill |
| Metric | N |
| Secondary Point Angle | 90 |
| Coating | C8 |
| Size | 1/2-13 |
| Length of Cut | 1.2790" |
| Chamfer Length | 0.0553" |
| Angle per Side | 45 |
| Included Angle | 90 |
