Harvey Tool
826516
HT - 826516
Specifications
| Diameter (Metric) | 1.16 |
|---|---|
| Length Of Cut (Metric) | 0.27 |
| Overall Length (Metric) | 38 |
| Coating/Finish | UN |
| Neck Diameter (Metric) | 0.7 |
| Short Description | M1.6 - 1.160 mm Cutter DIA x 5.600 mm Reach - 2 FL |

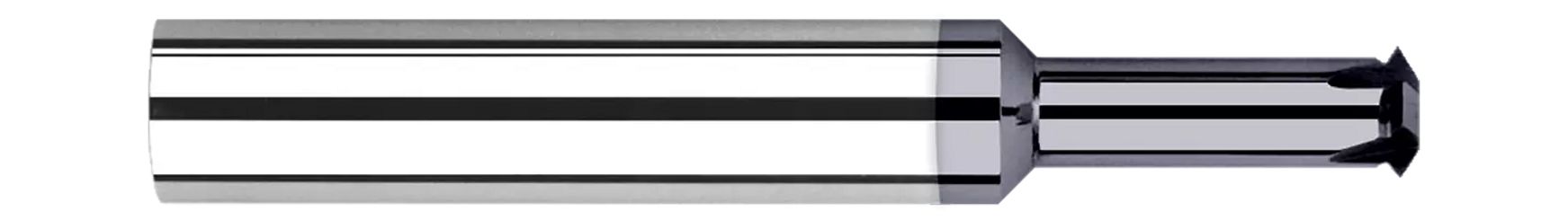

| Long Description | 1.160 mm Cutter DIA x 5.600 mm Reach Carbide Single Form M1.6 Thread Milling Cutter, 2 Flutes |
| Shank Size | 3 Inch |
| Included Angle | 60 Degrees |
| Number Of Flutes | 2 |
| Angle per Side | 30 Degrees |
| Metric | Yes |
| Size | M1.6 |
| Max Depth of Thread (Metric) | 5.6 |
| Reach Multiple | 8x |
| Base Item Number | 826516 |
| Product Type | Industrial Supplies |
| Shank Diameter | 3.000 mm |
| Weight | 0.007 |
| Overall Length | 38.000 mm |
| Cutter Diameter | 1.160 mm |
| Profile | Single Form |
| Neck Diameter | 0.696 mm |
| Length of Cut | 0.268 mm |
