Harvey Tool
829308-C3
HT - 829308-C3
Specifications
| Overall Length (Inch) | 2 |
|---|---|
| Type | II |
| Length Of Cut (Inch) | 0.1 |
| Coating/Finish | C3 |
| Short Description | 0.1250" (1/8) Shank DIA x 0.0150" (1/64) Flat x 60° included DE - 1 FL - AlTiN Coated |

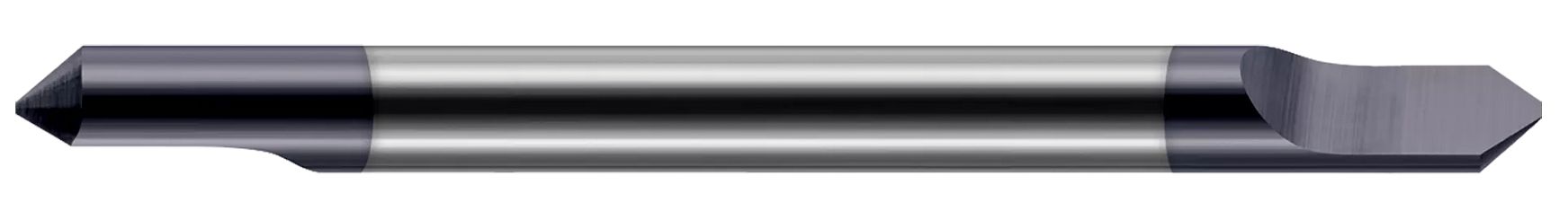

| Long Description | 0.1250" (1/8) Shank DIA x 0.0150" (1/64) Flat x 60° included Carbide Tipped Engraver DE, 1 Flute, AlTiN Coated |
| Metric | No |
| Shank Size | 1/8 Inch |
| Included Angle | 60 Degrees |
| Shank Size (Decimal) | 0.13 |
| Number Of Flutes | 1 |
| Flat on Part (Decimal) | 0.02 |
| Flat on Part (Fraction) | 1/64 |
| Split Length (Decimal) | 0.38 |
| Split Length (Fraction) | 3/8 |
| Angle per Side | 30 Degrees |
| Double Ended | Yes |
| Base Item Number | 829308-C3 |
| Product Type | Industrial Supplies |
