Harvey Tool
833030

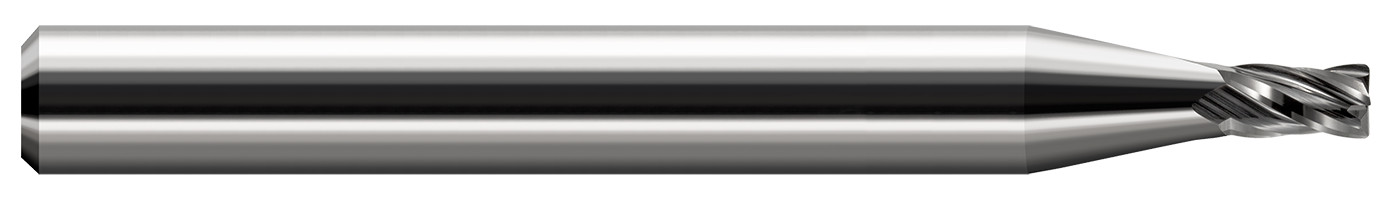

Miniature End Mill - 3 Flute - Corner Radius
Specifications
| Long Description | 0.2500" (1/4) Cutter DIA x 0.0300" Radius x 0.3750" (3/8) Length of Cut Carbide Corner Radius End Mill, 3 Flutes |
|---|---|
| Short Description | 3 FL - 0.2500" (1/4) Cutter DIA x 0.0300" Radius x 0.3750" (3/8) LOC |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 3 |
| LOC Multiple | (1.5x) |
| Weight | 0.06 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.2500" (1/4) |
| Profile | Corner Radius |
| Metric | N |
| Coating | UN |
| Length of Cut | 0.3750" (3/8) |
| Corner Radius | 0.0300" |
